TAIYO YUDEN Commercializes LCQPB Series of Power Inductors for Automotive Application

Product & Solution
Product

- The LCQPB series inductors are AEC-Q200 compliant, and the wide range allows a high degree of freedom in design -

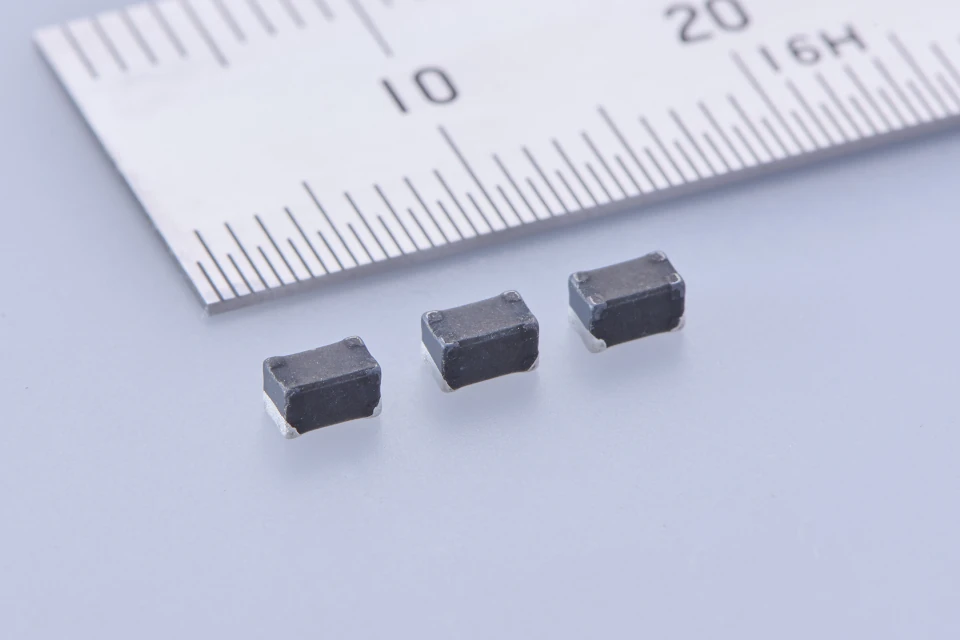

LCQPB Series

TOKYO, March 31, 2024 - TAIYO YUDEN CO., LTD. has commercialized the new LCQPB series of wire-wound ferrite power inductors, which have AEC-Q200 qualification for automotive passive components.
The LCQPB series power inductors are designed for use as choke coils and noise filters in DC-DC converters in power circuits for automotive body and information systems.
TAIYO YUDEN previously released the LCEN series and LCCN series of metal power inductors made from metallic magnetic substances for automobile application and the LCXN series and LCXH series of ferrite power inductors. To these, we add the new LCQPB series to give our customers more choice by substance and structure and a high degree of freedom in design.
The LCQPB series inductors have been manufactured by our overseas subsidiary, TAIYO YUDEN (PHILIPPINES), (Lapulapu City, Cebu) since March 2025. Samples are available for 50 yen per unit.

Technology Background
The advancements that we have seen in recent years in electronic controls in vehicles, as typified by ADAS units, have led to a greater number of power supply circuits on vehicles, which in turn has led to growth in the demand for power inductors that are used in these circuits. In order to miniaturize power supply circuits, engineers demand inductors with specific properties that allow high-density mounting with a high degree of freedom in design and noise suppression by frequency.
Therefore, TAIYO YUDEN has newly commercialized the LCQPB series, which complies with AEC-Q200. The LCQPB series inductors have a frameless structure that results in a small footprint. The new LCQPB series, together with our other series of inductors designed for automotive application, give our customers more choice by substance and structure and a high degree of freedom in design.
TAIYO YUDEN focuses on the development of products that meet market needs, and will continue to expand its power inductor product lineup.

■ Application
The LCQPB series power inductors are applicable as choke coils and noise filters in DC-DC converters in power circuits for automotive body and information systems.

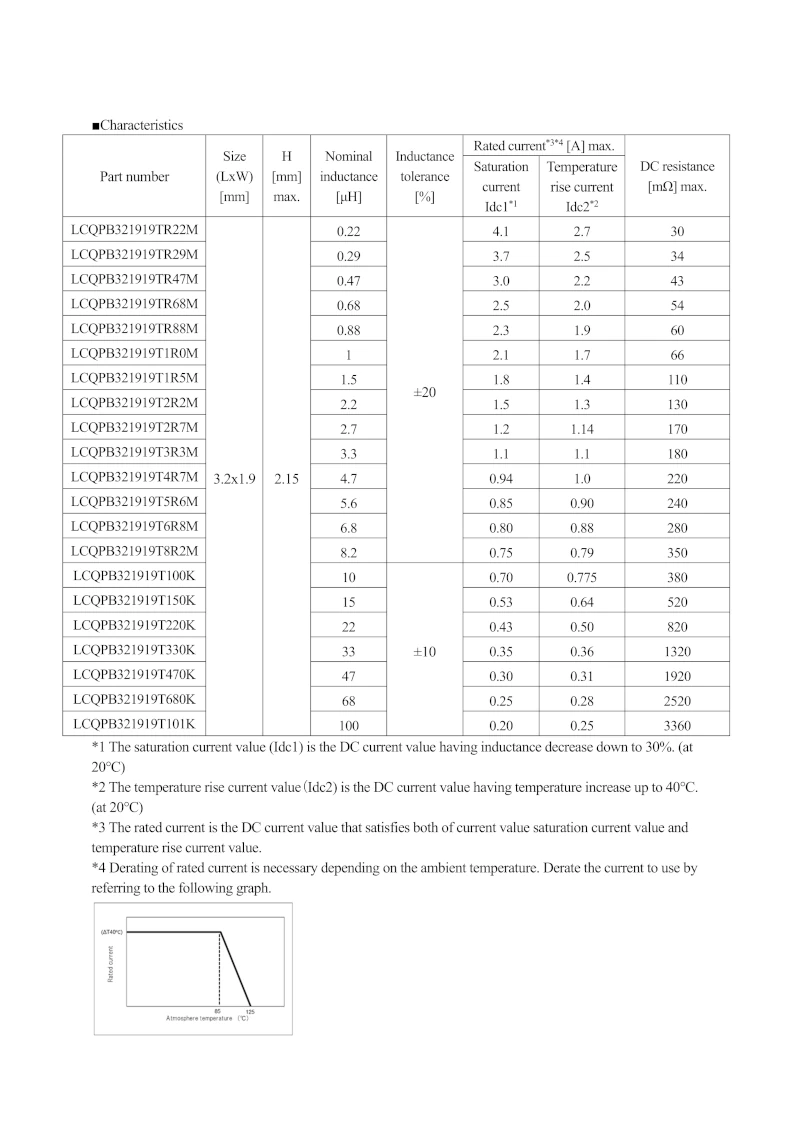

Part number Size (LxW) [mm] H [mm] max. Nominal inductance [μH] Inductance tolerance [%] Rated current*3*4 [A] max. DC resistance [mΩ] max. Saturation current Idc1*1 Temperature rise current Idc2*2  *1 The saturation current value (Idc1) is the DC current value having inductance decrease down to 30%. (at 20℃) *2 The temperature rise current value(Idc2) is the DC current value having temperature increase up to 40℃. (at 20℃) *3 The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. *4 Derating of rated current is necessary depending on the ambient temperature. Derate the current to use by referring to the following graph.
For the detailed product lineup, refer to TAIYO YUDEN's Web site:
https://ds.yuden.co.jp/TYCOMPAS/or/specificationSearcher?SR2=MP&Seri=BR_C&pg=1&cid=L&u=M

* The names of series noted in the text are excerpted from part numbers that indicate the types and characteristics of the products, and therefore are neither product names nor trademarks.


Note: Products are tested based on the test conditions and methods defined in AEC-Q200. Please consult with TAIYO YUDEN for details of the product specifications and AEC-Q200 test results, etc., and please review and approve TAIYO YUDEN's product specifications before ordering.
TAIYO YUDEN CO., LTD. Product Inquiries:
https://www.yuden.co.jp/en/contact/
